Giới thiệu về Su-27SKM và Su-30MK2 (Phần 3)

Chủ đề trong 'Kỹ thuật quân sự nước ngoài' bởi BALOO1000, 07/10/2008.

  1. 1 người đang xem box này (Thành viên: 0, Khách: 1)
  1. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    Tại các cuộc triển lãm 2008 như Maks hay Airshow China , FIDAe ? Nga có đưa ra một loạt các tên lửa mới có tầm xa hơn đến 285 km dùng để đối đất /hạm ,chống ra đa..như X-59MK ,X-59MK2 hay X-58ÚHKE và cả X-31PK?kể ra các máy bay Su-30 xuất khẩu thường chỉ có đến X-31P hay X-59ME có tầm bắn đến 115 km nên nếu dung các loại mới này chắc phải cải tiến hệ thống ra đa hay dung pod như máy bay của Malaysia Su-30MKM có thể dung X-59MK hay X-59MK2 nếu đeo pod.Riêng Su-35 với rađa mạnh thì dung vô tư , có lẽ cả Su-34 cũng có khả năng này.Xin giới thiệu để các bạn tham khảo
    A delegation of ?Tactical Missiles Corporation?o headed by Director General Boris Obnosov took part in the 7th International exhibition AIRSHOW CHINA-2008 held in the city of Zhuhai (China) from 04 to 09 November 2008.
    The Corporation?Ts stand was a part of an exposition of the Sukhoi aircraft holding. The models of missiles (scale 1:5) intended for arming Russian-made aircrafts, including those of the latest design were on display. There were models of Kh-31A, Kh-35E, Kh-31PK missiles manufactured by the Corporation?Ts flagship enterprise, X-58E and X-59MK missiles manufactured by GosMKB ?oRaduga?; X-29TE, R-73E, RVV-AE and R-27P1 missiles made by GosMKB ?oVympel?.
    In line with a new products promotion campaign the specifications of the Kh-38 missile family, X-58USHKE anti-radar missile, X-59MK2 missile and air bomb KAB-1500LG-F-E were provided to public.
    During the exhibition the Corporation?Ts stand was visited by the representatives of Chinese Air Force and Navy. The talks with the Chinese delegations on urgent issues of mutual cooperation were held.
    Tactical Missiles Corporation took part in FIDAE-2008, the key aerospace exhibition in Latin America , which was held in Santiago (Chile) form 31 March to 06 April 2008.
    Three manufacturers (parent enterprise, GosMKB ?oVympel? and GosMKB ?oRaduga?) presented their products. The models of Kh-25MSE, Kh-25MAE, Kh-31PK, Kh-35E, 3M-80E, X-58E, X-59MK, X-59ME, R-73E, RVV-А., R-27EP1, Х-29Т. missiles, the Bal-E missile system, the Moskit-E self-propelled launcher were on display.
    X-59MK2
    The X-59MK2 guided air-launched missile is intended to kill a variety of pin-pointed stationary ground targets, including targets with no radar, IR and optical background contrast. The missile operates on "launch-and-forget" principle and demonstrates high guidance accuracy due to autonomous terrain recognition in the target area. Low-level goal flight pattern of the missile is programmed in the flying mission. To provide the possibility of guidance on different targets, one or more missions can be loaded into the guidance system of the missile.
    The X-59MK2 missile can operate over any terrain, in any season in lighting environments of 10-3 ?" 105 lx.
    The missile can be operated with carrier-aircraft equipped with AKU-58-type aerial ejection system.
    Max launch range - 285 km
    Launch altitude range - 0.2 ?" 11 km
    Flight altitude - 50 ?" 300 m
    Flight speed - 900 ?" 1050 km/h
    Target aspect angle at missile launch - up to ± 45º
    Launch weight - up to 930 kg
    Length - 5.7 m
    Wingspan - 1.3 m
    Circular error probability (ECEP) - 3 - 5m
    OVOD-ME MISSILE SYSTEM WITH X-59ME MISSILE
    The Ovod-ME airborne missile system with X-59ME missile is designed to engage ground and surface targets visually observed by operator in fair weather con***ions. The system employs the X-59E airborne missile in the APK-9ME suspension pod. The missile is equipped with a navigation and automatic control system, as well as a TV/command guidance system ensuring high engagement precision of up to 2-3 metres (in manual mode). Operator can re-target the missile on its flight trajectory.




    Basic Specifications
    Max launch range, km 115
    Missile carrier launch altitude, m 200 ?" 1,500
    Missile carrier speed, km/h 600 ?" 1,100
    Missile cruising flight altitudes, m 7 (over sea); 50; 100; 200; 600; 1,000
    Missile cruising speed, Mach number 0.72 ?" 0.88
    Warhead types penetrating/cluster
    Penetrating/cluster warhead weight, kg 320/280
    Missile dimensions, m:
    length 5.7
    inner wing span 1.3
    body diameter 0.38

    The delivery set includes:
    - X-59ME missile
    - SNO-106ME missile?Ts ground support equipment set
    - missile?Ts group set of spare parts, tools and accessories
    - APK-9ME suspension pod
    - APK-9ME KNO-099E pod?Ts ground support equipment set
    - APK-9ME pod?Ts group set of spare parts, tools and accessories.
    X-59MK
    The X-59MK airborne enhanced-range air-to-surface guided missile with the ARGS-59E active radar homing head is derived from the X-59ME missile with the TV/command guidance system. It is designed for engagement of a wide range of radar-contrast sea surface targets in both fair and adverse weather con***ions at Sea States up to 6.
    The missile makes part of weapon systems of the Su-30 type aircraft.

    Basic Specifications
    Max launch range, km:
    against destroyer/cruiser-type targets 285
    against boat-type targets 145
    Min launch range, km 5 ?" 25
    Missile launch envelope:
    carrier speed at launch, km/h (Mach number) 600 ?" 1,000 (0.5 ?" 0.9)
    carrier altitude, km 0.2 ?" 11
    Missile flight speed, km/h 900 ?" 1,050
    Missile flight altitude , m:
    en route (over sea surface) 10 ?" 15
    at terminal leg 4 ?" 7
    Missile launch weight, kg not exceeding 930
    Warhead type penetrator
    Warhead weight, kg 320
    Missile dimensions, m:
    length 5.7
    wing span 1.3
    diameter, main body (without engine) / nose section 0.38/0.42
    The ASK automated testing system, making part of the OKA system, is modified for testing the X-59MK missiles during their scheduled servicing. The SNO-106MA ground support equipment is used for missiles?T maintenance in technical positions, their shipping and storage in arsenals and depots, scheduled servicing, testing, and transfer for suspension under carrier aircraft.
    X-58USHKE
    The X-58USHKE anti-radar missile with a wide-range passive radar seeker (integrated A,A'',B,B'',C frequency band) and navigation and independent control system based on gimballess INS ('~НС) is designed to kill active pulse mode radars operating within 1.2?11 GHz carrier-frequency band, and continuous mode operating A-band radars.
    The missile operates on "launch-and-forget" principle.
    The X-58USHsE missile offers a unique combination of high accuracy guidance, powerful payload and small size, providing its arrangement in enlarged aircraft ammunition on external suspension points under advanced multi-purpose aircraft and inboard.
    The X-58USHsE missile is used to hit programmed radar targets, as well as radar targets, being expe***iously detected by the aircraft carrier target designation system.
    Minimum launch range at Ho = 200 m altitude - 10 - 12 km
    Max. launch range at Ho = 200?20000 m altitude, from external suspension points - 76-245 km
    Launch altitude range - 200?20000 m
    Target aspect angle at the launch of the missile ?" up to ± 15 degrees
    Missile launch weight - 650 kg
    Length - 4.19 m
    Wingspan
    - 0.8 m(unfolded)
    - 0.4 m (folded)
    [​IMG]
    [​IMG]
    [​IMG]
  2. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    X-59Mk/X-59MK2/X-59ME
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    Được gulfoil sửa chữa / chuyển vào 10:18 ngày 22/02/2009
  3. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4

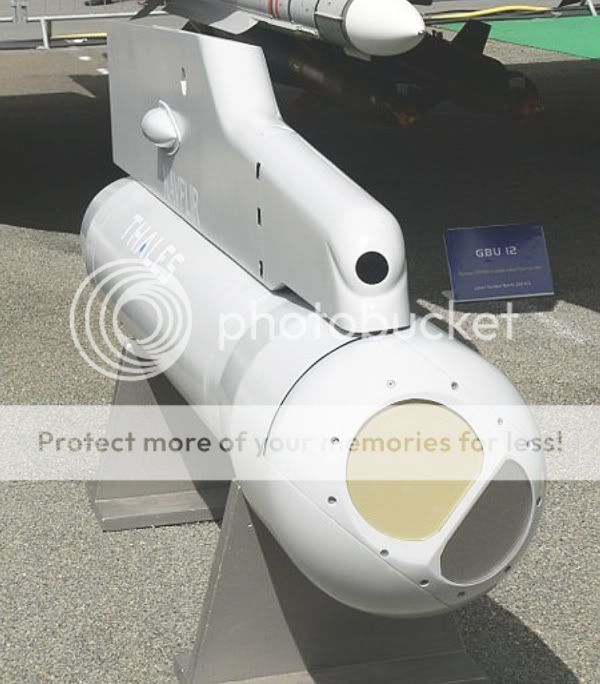

    Pod điều khiển tên lửa X-59MK cho Su-30
    [​IMG]
    [​IMG]
    [​IMG]
  4. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    X-58USHKE
    [​IMG]
    [​IMG]
  5. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    X-31PK là tên lửa cải tiến của X-31P về đầu đạn nổ và kíp nổ không tiếp xúc có hiệu quả hơn và phá được các dàn ăng ten có chiều cao ngóc lên đến 15m
    [​IMG]
    [​IMG]
  6. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    Nga vẫn nổi tiếng về tên lửa X-31A dùng để đánh hạm với tầm bắn 70-80km nay đã cải tiến lên X-31AD với tầm bắn 100km còn tên lửa X-31P dùng tiêu diệt ra đa có tầm bắn 110km nay cải tiến thành X-31PD có tầm bắn 150km ,cả hai loại tên lửa cải tiến nói trên đều có trọng lượng gần 700kg
    [​IMG]
    X-31AD
    [​IMG]
    X-31PD
    [​IMG]
  7. gulfoil

    gulfoil Thành viên mới

    Tham gia ngày:
    27/03/2003
    Bài viết:
    3.090
    Đã được thích:
    4
    Su-34 đeo tên lửa X-31A/X-31P.Có lẽ cũng nên bàn chuyên đề về Su-34 và Mig-31BM vì Nga đã bắt đầu trang bị và sử dụng trong quân đội Nga, các mạng nước ngoài cũng đã bắt đầu bàn tới đấy
    [​IMG]
    [​IMG]
    [​IMG]
    Được gulfoil sửa chữa / chuyển vào 10:10 ngày 23/02/2009
  8. BALOO1000

    BALOO1000 Thành viên mới

    Tham gia ngày:
    21/09/2008
    Bài viết:
    1.041
    Đã được thích:
    0
    Mấy bài của comrade Dầu Vịnh hay quá
    Su-30 Venezuela
    [​IMG]
    [​IMG]
    Được BALOO1000 sửa chữa / chuyển vào 23:43 ngày 26/02/2009
  9. fddinh

    fddinh Thành viên rất tích cực

    Tham gia ngày:
    27/07/2006
    Bài viết:
    2.342
    Đã được thích:
    1
    Hãng chế tạo máy bay quân sự nổi tiếng Su-khôi của LB Nga đang triển khai các chương trình nâng cấp và phát triển mới máy bay chiến đấu hiện đại, kết hợp ?otổng lực? các tiến bộ khoa học và công nghệ tiên tiến của ngành hàng không thế giới. Kết quả của việc ứng dụng công nghệ mới đã phát triển hàng loạt máy bay trên cơ sở mẫu máy bay chiến đấu đa năng Su-27, như Su-27SM, Su-30MKK, Su-30MKI và mới đây nhất là máy bay tiêm kích-bom Su-34.
    Máy bay Su-34 có lịch sử phát triển đặc biệt nhất, kéo dài suốt 20 năm tính từ khi thiết kế mẫu đầu tiên đến khi chính thức đưa vào trang bị cho không quân Nga vào tháng 8-2007. Máy bay Su-34 được giới khoa học hàng không đánh giá là máy bay hiện đại nhất bởi nó được trang bị các loại vũ khí tối tân, khả năng chiến đấu cao và rất tiện nghi với những trang bị nội thất không thua kém máy bay dân dụng hiện đại. Thiết kế mẫu máy bay Su-34 đầu tiên đưa ra từ giữa thập niên 80 thế kỷ trước, với chương trình mang mật danh T-10V dựa trên mẫu máy bay Su-27. Máy bay T-10V bay thử lần đầu vào tháng 4-1990, song do những biến cố về chính trị, mãi đến năm 1994 chương trình T-10V mới khởi động trở lại và ký hiệu máy bay Su-34 chính thức được công bố. Qua 7 mẫu thiết kế, thử nghiệm, khi đưa vào trang bị chính thức cho không quân Nga, máy bay này mang ký hiệu Su-34 Platypus.
    [​IMG]
    The Su-34 fighter bomber is a derivative of the Su-27 fighter aircraft.
    Máy bay Su-34 có cấu trúc cánh, đuôi và động cơ kết hợp những ưu việt của các thế hệ máy bay Su-27, Su-30, Su-33 và Su-35 nhằm tạo khả năng siêu cơ động và giảm lực cản. Phần mũi và phần thân trước máy bay thiết kế hoàn toàn mới để tạo không gian cho buồng lái hai chỗ ngồi ngang hàng nhau. Buồng lái của máy bay lớn, lối lên xuống từ bụng máy bay; trong buồng lái bố trí bếp, nhà vệ sinh, giường nằm giống như trên máy bay dân dụng. Buồng lái có thiết bị điều áp tự động, phi công không cần đeo mặt nạ dưỡng khí khi hoạt động ở độ cao hơn 10km. Ghế lái K-36 thiết kế phù hợp để phi công bay trong thời gian dài, nhưng không mệt mỏi, cảm giác thoải mái để thao tác.
    [​IMG]
    The Su-34 designation refers to the T1OV (Su-27IB).
    Trên máy bay có màn hình màu đa chức năng; ra-đa mạng pha quét điện tử V004 Leninets, hệ thống la-de truyền hình UOMZ để chỉ thị mục tiêu và dẫn vũ khí, ra-đa V005 dùng để cảnh báo tên lửa dẫn bằng hồng ngoại? Máy bay Su-34 có 12 giá treo, có khả năng mang tới 8 tấn vũ khí, trong đó có các tên lửa hành trình đối hạm, tên lửa không đối không và pháo tự động 30mm. Dự trữ hành trình của Su-34 là 4.500km, khi được tiếp nhiên liệu, tầm hoạt động tới 14.000km. Hãng Su-khôi còn ứng dụng công nghệ plasma cho các thiết bị điện tử và công nghệ làm giảm dấu hiệu bộc lộ ra-đa, giúp cho máy bay ?otàng hình?, lẩn tránh hỏa lực đối phương và tiến công, tiêu diệt mục tiêu bất ngờ, hiệu quả.
    ĐỨC GIANG- QĐNDOL
  10. fddinh

    fddinh Thành viên rất tích cực

    Tham gia ngày:
    27/07/2006
    Bài viết:
    2.342
    Đã được thích:
    1
    [​IMG]
    [​IMG]
    Development Su-32/34 aircraft have been displayed with the full suite of current Russian precision guided munitions. The maritime Su-32FN also also been displayed with the Kh-41 Sunburn, and early mockups of the 3M-54 family.
    [​IMG]
    GNPP KAB-500 and KAB-1500 guided bombs
    [​IMG]
    There has been ongoing speculation about the development of a dedicated electronic attack / support jammer variant of the Fullback, filling the niche occupied by the EA-6B Prowler, EA-18G Growler and EF-111A Raven. The Fullback has the size to perform this role better than both the EA-6B and EA-18G, but would not compete with the EF-111A.
    [​IMG]
    [​IMG]
    Comparison of Su-34 and Su-30MK. The Su-32/34 series is a new design, despite its reuse of a large number of existing Flanker components. The fuselage is largely new sharing only the aft engine nacelles with the Su-27/30
