Hình ảnh về các loại tàu chiến tàng hình trên thế giới

cám ơn bác gufoil

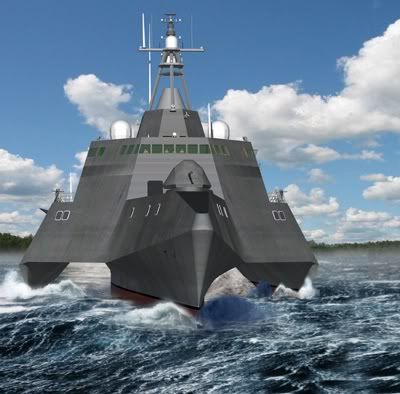

nhắc về tàu tàng hình mà không nhắc về em này là một thiếu sót lớn ,kết cấu hình học đặc biệt giúp giảm tối đa tín hiệu ra-đa :

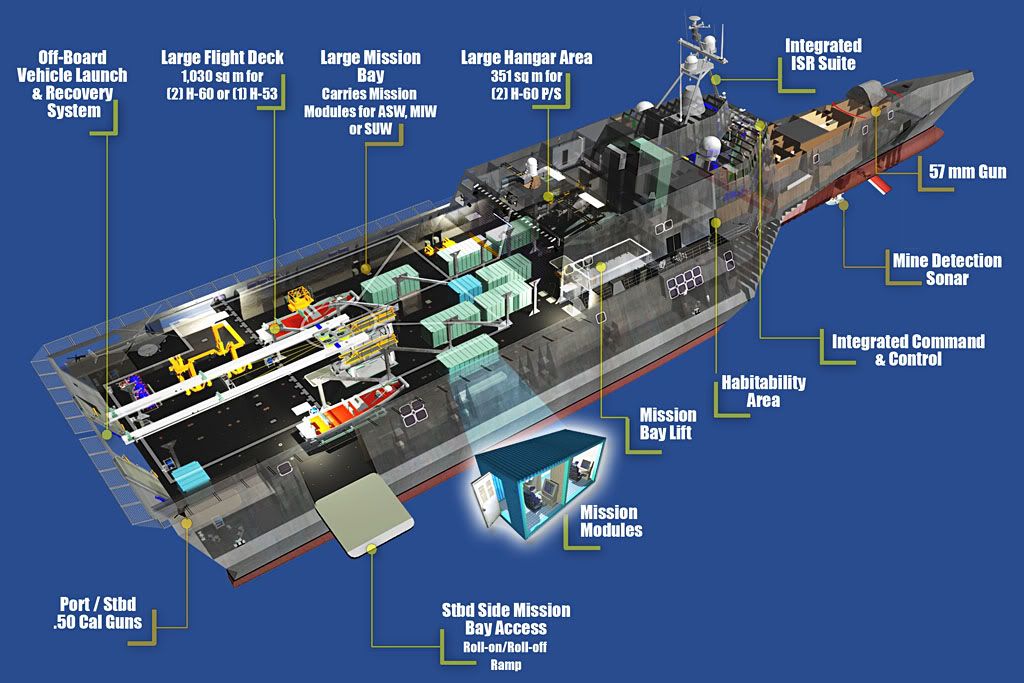

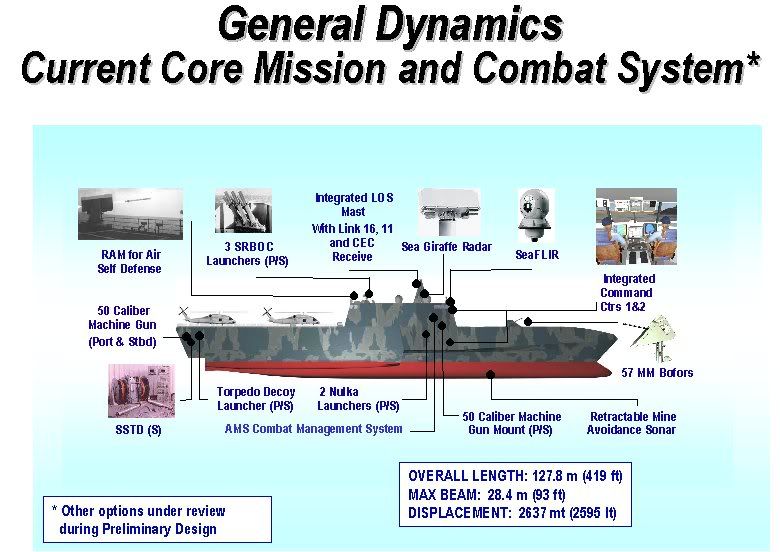

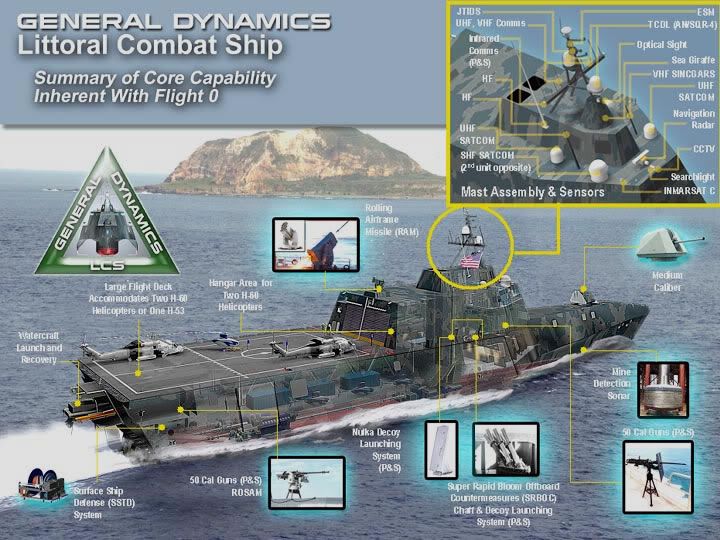

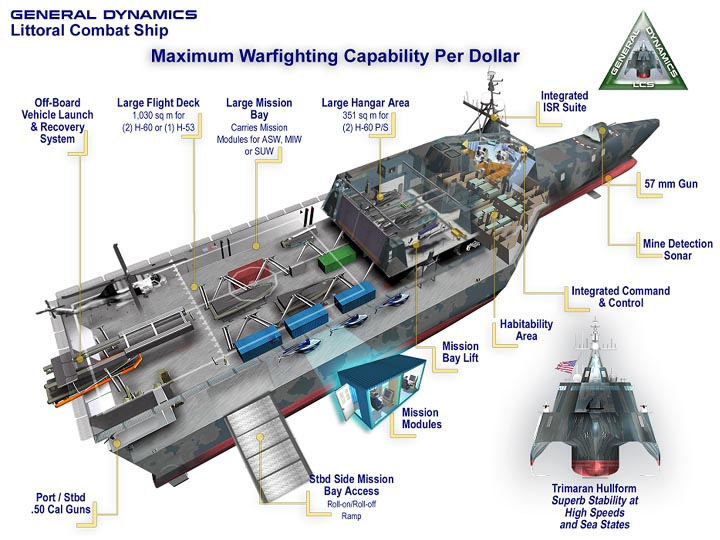

Littoral Combat Ship (LCS)
Hull Service Life 30 years
Draft at Full Load Displacement 10ft
Sprint Speed in Sea State 3 50kt
Range at Sprint Speed with Full Payload 1,500nm
Range at Economical Speed 4,300nm
Economical Speed >20kt
Crew Size 15 to 50 core crew
Accommodation for Core and Mission Crew 75
Operational Availability 95%
Aviation Facilities:
Embark and Hangar 1 x MH-60R/S and VTUAVs
Flight Deck MH60R/S, UAVs, NTUAVs
Aircraft Launch and Recovery Up to Sea State 5
Watercraft Launch and Recovery Sea State 4, in 15 minutes
Watercraft Mission Packages 11m RHIB, 40ft high-speed boats
Time for Change of Mission Packages One day
Ship and Crew Provisions 21 days (336 hours)
Underway Replenishment 180t including 105t mission packages and 75t mission package fuel
Featured Suppliers:
L-3 ELAC NAUTIK - SONAR SYSTEMS, ECHO SOUNDERS AND UNDERWATER COMMUNICATION SYSTEMS
Saab - 3-D Navy Radar
ShipConstructor - Ship-Design Software

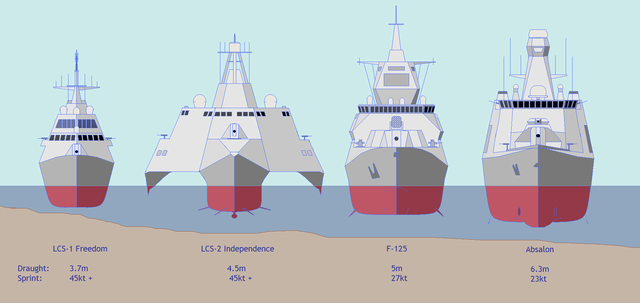

và cuối cùng các họ hàng nhà em nó

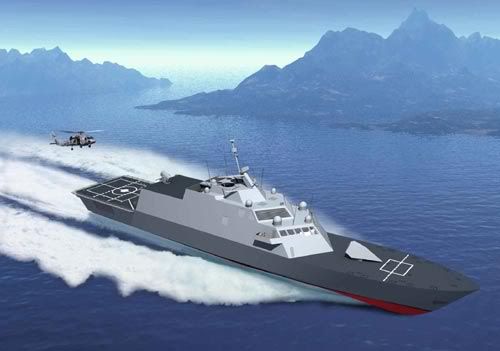

Con này thuộc dự án LCS-1có tên là USS Freedom đã được hạ thủy.
Hai chiếc tàu Independence (Độc lập), đóng ở Alabama - và Freedom (Tự do), đóng tại Wisconsin nằm trong dự án Tàu chiến Duyên hải (LCS) của hải quân Mỹ.
Năm 2003, hải quân Mỹ bắt đầu khởi động chương trình nghiên cứu tàu chiến đấu duyên hải đầu tiên mang tên Chiến binh Biển cả. Mẫu tàu FSF-1 ra đời và được đưa vào phục vụ hồi năm 2005 trong vai trò một tàu thử nghiệm.
Năm 2004, các hãng Lockheed Martin, General Dynamics và Raytheon đã đệ trình những mẫu thiết kế tàu LCS mới cho hải quân. Sau quá trình lựa chọn, hải quân đã đồng ý để Lockheed Martin chế tạo thử hai mẫu tàu LCS-1 và LCS-3 còn General Dynamics chế tạo LCS-2 và LCS-4.
Trong hai mẫu tàu kể trên, LCS-1 đã được đặt tên chính thức là USS Freedom.
Lễ hạ thủy Freedom:

USS Freedom (dự án LCS 1)-Mỹ:

Chiếc Freedom của Lockheed Martin không có gì đặc biệt về hình dáng. Đây là loại tàu một thân bằng thép, phía trên là nhôm, trọng tải 3.089 tấn, chiều dài 115,3m, rộng 17,5 mét, sử dụng 2 động cơ xăng Rolls-Royce MT30 36 MW, 2 động cơ diesel Colt-Pielstick, 4 máy phản lực phụt nước Rolls-Royce.
Freedom có tốc độ tối đa 87km/h, tầm hoạt động 6.500km, mang theo thủy thủ đoàn 40 người và khi cần có thể mở rộng lên thành 75 người. Tàu được trang bị 1 pháo 57mm BAE Systems Mk 110, hệ thống treo tên lửa RIM-116, từ 45 - 60 tên lửa trong module phóng AsuW.
Tàu được trang bị một hệ thống phóng tên lửa RIM-116 để lắp các tên lửa phòng không tầm ngắn hoặc tên lửa hành trình. Mũi tàu có một module vũ khí dùng để lắp ụ pháo BAE Systems Mk 110 57 mm hoặc lắp thiết bị phóng tên lửa, từ 45 - 60 tên lửa trong module phóng AsuW.
Khoang chứa máy bay của Freedom lớn gấp 1,5 lần khoang chứa trên tàu chiến tiêu chuẩn và sử dụng một hệ thống vận chuyển tự động để đưa máy bay vào khoang. Do khoang chứa lớn, tàu có đủ chỗ để 1 hoặc 2 chiếc trực thăng đa năng SH-60 Sea Hawk và 3 chiếc trực thăng không người lái MQ-8 Fire Scout.

Được tombuys sửa chữa / chuyển vào 15:34 ngày 22/04/2010
Được tombuys sửa chữa / chuyển vào 15:36 ngày 22/04/2010

thêm vài video về LCS-2 và VISBY để các bác giải trí :
http://www.youtube.com/watch?v=xgdA_9QsWgE
http://www.youtube.com/watch?v=5RgfwrXevNU&feature=related
http://www.youtube.com/watch?v=iZtb_s__jws&feature=related
http://www.youtube.com/watch?v=X3pjaNlpd9I&feature=related
http://www.youtube.com/watch?v=VlcZh7JfAS8&feature=related
http://www.youtube.com/watch?v=ZK30zsBsD-Q&feature=related

Lại bàn thêm về mấy chú khu trục hạm tàng hình của Ấn Độ
India Navy to get 16 stealth frigates in 10 years
21 Apr 2010, 1917 hrs IST,IANS

Topics:RussiaIndia NavyIndian Navystealth frigates
NEW DELHI: The Indian Navy is to get 16 stealth frigates in the next 10 years, with 10 being built indigenously, three imported from Russia and
another three on order, an officer said on Wednesday.
The first indigenously-built stealth ship, INS Shivalik, will be commissioned on April 29. The 6,000-tonne ship was built at Mumbai''s Mazagaon Docks Limited under Project 17. Two more such vessels - INS Satpura and Sahyadri - are under construction and are likely to be commissioned in the next one year.
The cost of each frigate is nearly Rs 2,300 crore. The stealth features prevent a ship from being easily detected by radar, reduce underwater radiated noise signatures and ensure infrared suppression.
The ship is fitted with state-of-the-art technology and bristles with a sophisticated system of radars and weaponry. Its armaments include the Klub surface-to-surface missiles and the Shtil and Barak air defence missiles, rocket launchers and indigenously designed sonar systems meant for detecting and attacking submarines.
Shivalik, which has a crew of 250, "is equipped with a judicious mix of Russian, Western and indigenous weapons and sensors. The indigenous effort accounts for over 60 per cent of the ship''s cost," Rear Admiral KN Vaidyanathan, director general (Naval Design), told reporters in New Delhi.
"Besides design and construction, which is totally indigenous, the ship incorporates technologically advanced indigenous systems such as the integrated versatile console system, ship-wide data network and the jointly developed (with Russia) combat management system," he added.
According to naval officers, the Shivalik class vessels will be the mainstay frigates of the Indian Navy in the first half of the 21st century.
The ships also have the indigenous Kavach chaff-dispensing system to counter incoming missiles, as also indigenous sonars and anti-submarine warfare systems.
Vaidyanathan pointed out that for the first time, an Indian Navy ship would be powered by combined diesel or gas (CODOG) technology. "The propulsion plant combines the long endurance of diesel propulsion with the high-power of the gas turbine for high speeds."
He said designing is in an advanced stage of the Project 17A vessels, a follow on of the Shivalik class frigates with advanced weapons and sensor suites and improved stealth features. Seven such vessels will be built.
"Acceptance of necessity (AON) has been accorded in June 2009 for building seven ships of this class," he added.
The Indian Navy operates three stealth frigates - Talwar, Trishul and Tabar - bought from Russia. Three more are being built in Russia and likely to be commissioned by next year. With the completion of Project 17A, the Indian Navy will have 16 stealth frigates in its fleet.

một lớp tàu mới của mỹ mà các bác chiến cũng nhiều ! được khởi công 2008-2009 dư định giao vào năm 2013 -2014











thêm một link video :
http://www.youtube.com/watch?v=-f7IN9D5scM

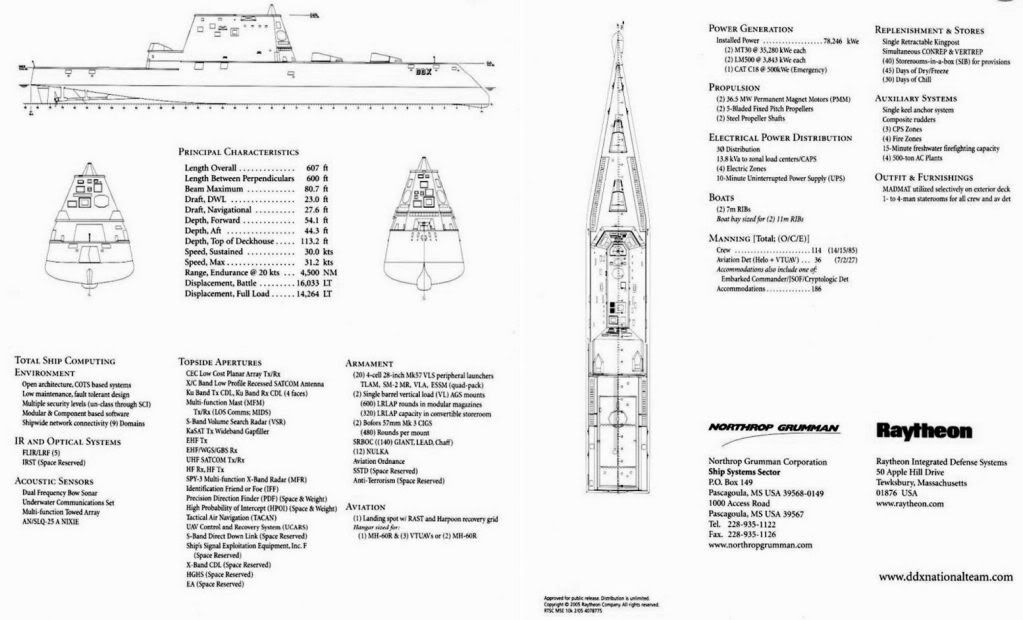

Crew 142 including aviation detachment
Dimensions:
Length 183m (600ft)
Beam 24.5m (80.7ft)
Draught 8.41m (27.6ft)
Full Load Displacement 14,797t (14,564LT)
Performance:
Sustained Speed Around 55km/h (30kt)
Weapon Systems:
Missiles Tomahawk, Standard and ESSM
Launcher 20 4-cell mk57 VLS
Gun 155mm Advanced Gun System
Range 100nm
155mm Rounds 600
Firing Rate 12 rounds/min
Close-In Guns 2 x mk110 57mm
Radar:
Multifunction Radar (MFR) SPY-3 X-band active phased-array
Volume Search Radar (VSR) S-band
Sonar Raytheon AN/SQQ-90 integrated undersea warfare system includes AN/SQS-60 hull-mounted mid-frequency sonar, AN/SQS-61 hull-mounted high-frequency sonar and AN/SQR-20 multifunction towed array sonar
Propulsion:
Installed Power 78MW
All-electric drive with integrated power system (IPS) Two fixed-pitch propellers
Gas Turbines 2 x Rolls-Royce MT30 36MW
Aircraft:
Helicopters 2
Featured Suppliers:
Converteam - Naval Electric Power, Propulsion and Control Systems

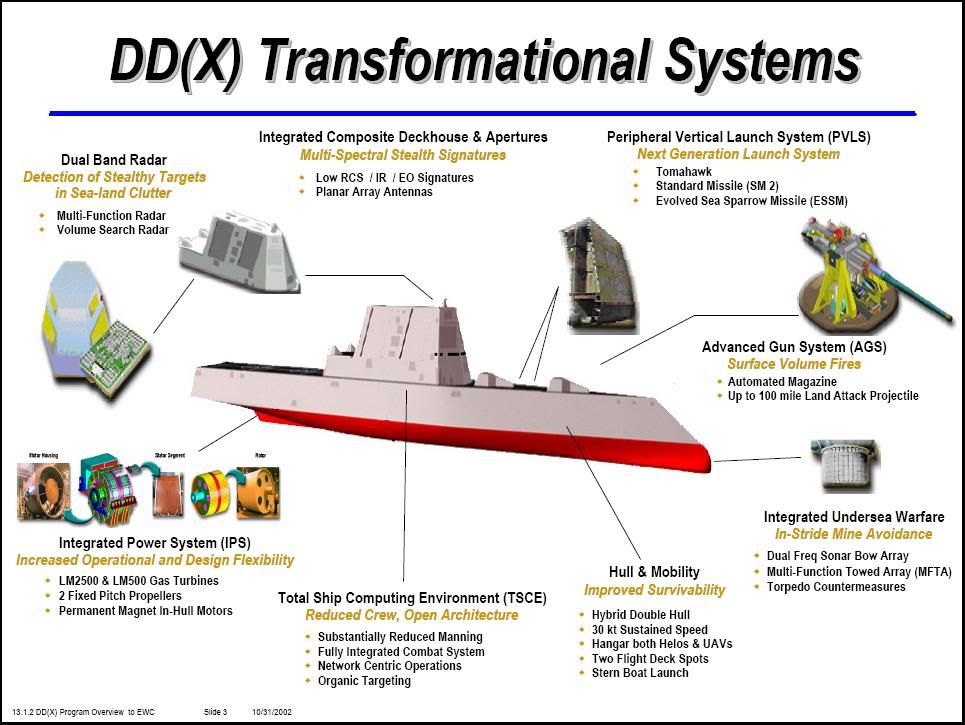

In November 2001, the US Department of Defense announced that the DD 21 programme for the future surface combatant had been revised and would now be known as DD(X). The programme focus would now be on a family of advanced technology surface combatants, rather than a single ship class.
A revised request for proposals was issued and in April 2002, Northrop Grumman Ship Systems, Ingalls was selected as the lead design agent for DD(X). Northrop Grumman led the ''gold team'' which included Raytheon Systems Company as the systems integrator. The ''gold team'' proposal incorporates ''blue team'' leader Bath Iron Works (a General Dynamics company) as a subcontractor for design and test activities. Other major subcontractors include Lockheed Martin, BAE Systems Land and Armaments (formerly United Defense) and Boeing.
In November 2005, DD(X) was approved for system development and demonstration (SDD). In April 2006, the USN announced that the first ship of the class will be designated DDG 1000 Zumwalt. The second ship will be Michael Monsoor (DDG 1001).
The USN budget for the 2007 and 2008 financial year provides funding for the first two ships to be built by General Dynamics Bath Iron Works and Northrop Grumman Ship Systems, rather than hold a competition, as was previously anticipated. In September 2007 it was decided that Bath Iron Works will build the lead ship.
The US Navy awarded the contract for the construction of the first two ships to General Dynamics (DDG 1000) and Northrop Grumman (DDG 1001) in February 2008. The construction of DDG 1000 began in October 2008 and DDG-1001 began in September 2009. The first vessel is scheduled for delivery in 2013 and the second in 2014.
The number of ships required was planned to be between eight and 12 but, in July 2008, the US Navy announced that the DDG 1000 programme would be cancelled after the completion of the first two ships. The USN will instead continue with construction of further Arleigh Burke (DDG 51) destroyers. However, in August 2008, the USN announced that it had decided to provide funding for a third Zumwalt Class destroyer. In April 2009, it was announced that the DDG-1000 programme would end with the third ship.
Northrop Grumman has completed DDG 1000 system design and 11 engineering development models (EDM) and the system-wide critical design review was successfully completed in September 2005. The EDMs include: advanced gun system, integrated power system, composite deckhouse, peripheral vertical launch system, integrated sonar system (with advanced towed array and high-frequency active sonar) and dual band radar suite. A decommissioned Spruance Class destroyer (USS Arthur W Radford) will serve as the test platform for the DDG 1000.
DDG 1000 replaces the DD 21 Zumwalt programme which was for a class of 32 multimission destroyers to replace Oliver Hazard Perry Class frigates (FFG 7) and Spruance class destroyers (DD 963) from 2012. Unlike previous classes of destroyer, which were primarily to counter deep-water threats, the DD 21''s primary mission would be to provide land attack support for ground forces and also to carry out tra***ional destroyer missions of anti-air, anti-surface and undersea warfare.
"The DDG 1000 will have a ''tumblehome'' hull form."
Design
DDG 1000 will have a ''tumblehome'' hull form, i.e. a design in which hull slopes inward from above the waterline. This will significantly reduce the radar cross section since such a slope returns a much less defined radar image rather than a more hard-angled hull form.
Requirements for the integrated deckhouse EDM is that it is fully EMC (electromagetic compatibility) shielded with reduced infrared and radar signatures. Measures to fulfil these con***ions include an all-composite superstructure, low signature electronically steered arrays, an integrated multi-function mast and low radar and infrared signatures. Other measures to reduce the vessel''s infrared signature include the development of an exhaust suppressor.
Harris Corporation has been awarded a contract for the development of the common data link (CDL) X/Ku-band phased array antenna systems, which will be integrated into the integrated deckhouse assembly. The multi-beam electronically-steered antenna will allow connectivity with up to eight CDL terminals.
The DDG 1000 is planned to have a displacement of around 12,000t, less than the 14,000t or more of the DD-21, with a sustained speed of around 30kt.
Crew
DDG 1000 will have a crew of 142, including the aviation detachment. This represented major theoretical cost saving compared to crew levels of 330 on Spruance destroyers and 200 on Oliver Hazard Perry frigates.
Command and control
In November 2007, Raytheon IDS was awarded the contract as the prime mission systems integrator for all electronic and combat systems.
The combat system will be based on the total ship computing environment (TSCE) utilising open architecture, standardised software and commercial-off-the-shelf (COTS) hardware. General Dynamics is responsible for the common enterprise display system (CEDS).
Weapons
DDG 1000 will have a sensor and weapons suite optimised for littoral warfare and for network-centric warfare. Northrop Grumman has put forward a solution based on a peripheral vertical launch system (PVLS). The solution consists of 20 four-cell PVLS situated round the perimeter of the deck, rather than the usual centrally located VLS. This would reduce the ship''s vulnerability to a single hit.
The advanced vertical launch system (AVLS) that forms the basis of the PVLS is being developed by BAE Systems Land and Armaments and Raytheon and has been designated the mk57 VLS.
Missile systems under consideration include Tactical Tomahawk (intended *****cceed Tomahawk TLAM), Standard Missile SM-3 and the Evolved Sea Sparrow Missile (ESSM) for air defence.
"DDG 1000 missile systems under consideration include Tactical Tomahawk, SM-3 and the ESSM."
BAE Systems Land and Armaments has been awarded the contract to develop the EDM for the ship''s advanced gun system (AGS), building on development work carried out for DD-21. The vessel''s two 155mm guns will be able to fire up to 100nm at a sustained rate of 12 rounds a minute. It will be equipped with a fully automated weapon handling and storage system and a family of advanced munitions and propelling charges, including the GPS-guided long-range land attack projectile (LRLAP). Up to 900 rounds of LRAP ammunition will be carried.
Lockheed Martin has been awarded the contract for the LRAP EDM.

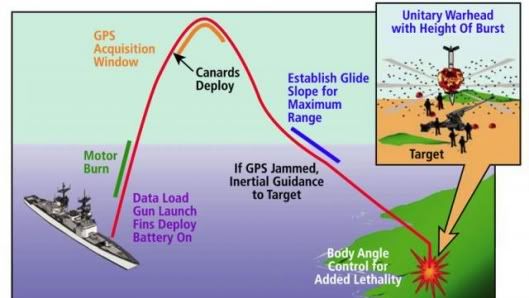

The family of munitions is expected to include land attack and ballistic projectiles. Technologies derived from the US Navy''s extended-range guided munition (ERGM), the US Army 155mm XM-982 projectiles and the DTRA 5in projectile are being studied for incorporation into the projectile suite.
BAE Systems Land and Armaments is developing advanced gun barrel technologies for the new AGS, with improvements to barrel life, overall system performance and life-cycle costs.
The ship''s close-in gun system (CIGS) will be the BAE Systems Land and Armaments 57mm mk110 naval gun. The gun has a firing rate of 220 rounds a minute and range of 14km (nine miles).
Raytheon IDS is supplying the ship''s electro-optical / infrared suite which has five Lockheed Martin sensors and will provide 360£ surveillance and gun fire control.
Radar
The radar suite will consist of a dual-band radar for horizon and volume search ?" a Lockheed Martin S-band volume search radar (VSR) integrated with the AN/SPY-3 multi-function radar already being developed by Raytheon for the US Navy. The two radars are to be integrated at waveform level for enhanced surveillance and tracking capability.
The AN/SPY-3 multi-function radar (MFR) is an X-band active phased-array radar designed to detect low-observable anti-ship cruise missiles and support fire-control illumination for the ESSM and standard missiles.
Sonar
The ship''s Raytheon AN/SQQ-90 integrated undersea warfare system includes AN/SQS-60 hull-mounted mid frequency sonar, AN/SQS-61 hull-mounted high-frequency sonar and AN/SQR-20 multi-function towed array sonar and handling system.
Aircraft
The DDG 1000 ship design includes two landing spots for helicopters.
Propulsion
"At the heart of the ship''s integrated undersea warfare system will be a dual-frequency bow array and a multi-function towed array."
It was envisaged that the DDG 1000 would have an all-electric drive with an integrated power system, (IPS) based on in-hull permanent magnet-synchronous motors (PMMs). The provision of electric drive eliminates the need for drive shaft and reduction gears and brings benefits in acoustic signature reduction, an increase in available power for weapon systems and improvements in the quality of life for crew.
DRS Technologies power technology unit received development contracts for the PMM motors, electric drive and control system for the IPS.
However in September 2007, Converteam (formerly Alsthom Power Conversion) was awarded the contract for the IPS with a solution based on advanced induction motors (AIM).
The Rolls-Royce MT30 36MW gas turbine generator set has been selected to power the IPS EDM. Rolls-Royce delivered the first set in February 2005. Rolls-Royce was awarded a contract for four MT30 sets for the first two DDG-1000 destroyers in March 2007. The MT30 has 80% commonality with the Rolls-Royce Trent 800 aero engine and Rolls-Royce states that it is the most powerful marine gas turbine in the world. CAE will supply the integrated platform management system.

công nhận về khoản tàng hình thì anh mẽo voi bon thuỵ điên em thấy là đỉnh :cha biết tính năng thế nào nhưng ngoại hình mấy em này nhìn ko đơ được ;

xu hướng tàng hình tạm phân ra hai nhánh giữa nga và phương tây :
-phương tây : đi chuyên sâu vào mảng tàng hình bị động , giảm tín hiệu ra-da ,giảm phát xạ hồng ngọai bằng cac phương pháp sơn ram tàng hình ,thiết kế kiểu dáng khí động học để tín hiệu ra-đa nhỏ nhất ,nghiên cứu công nghệ vỏ coposite mới.........
-còn nga : cái này trình nhà tớ hơi còi ,đi sâu vào tàng hình chủ động ,sử dụng công nghệ gây nhiểu ra-da ,sơn ram ,công nghệ plasma............
nhưng nhìn chung về thiết kế mỹ thuật hệ vũ khí phương tây nhìn rất bắt mắt ,cực đẹp

Mấy bạn hay bàn về ra đa nay xem mấy ra đa của Nga

em bên phia nga ; theo ngu ý của em là thế này : tầu nga nhìn chung phòng thỉ hoăc tấn công có vể mạnh hơn phương tay : về khả năng sô lô thì em nghỉ chả thăng nào ăn đươc tầu nga . như về phối hợp trong biên đọi tầu thì mỹ luôn là đỉnh cao, chính vì hệ thống ttll của mẽo phát triên cao nên viêc tổ chúc các biên đội tâu nó tốt. nến hải quân nga chỉ cần 1 em Piốt Đại Đế và 2 chú tuần dương hạm cơ trung bình củng tạo ra sự thay đổi đang kể. nhưng hải quân mỹ lại phân rõ nhiêm vụ cho tưng lớp tầu một : ví nhu 1 TSB của mẽo chỉ đơn thuần là chở máy bay , ko có hoac cục kỷ yếu phòng không , đơn gian vi nó ko đi 1 mình . nhiêm vụ phòng không hay cảnh báo sơm là việc các tâu hộ tông đảm nhiêm. con nga thì ôm hết lên 1 tầu ; ví nhủ Tàu sân bay Admiral Kuznetsov có phòng không rất mạnh trang bị hệ thống tên lửa phòng không Klinok ,tên lửa Granit : vi vậy tầu nga luôn đa năng và ko nhất thiết phải trong biên đội tầu khi lam nhiệm vụ : TÓM LẠI TẦU MẼO BÓNG BẨY VÀ ĐI ĂN THEO BẦY , TÂU NGA THÌ HẦM HỐ KHẢ NĂNG PK SÔ LÔ VÔ ĐỐI NHƯNG CỒNG KỀNH VÀ SẤU : em ngu muội ko biết nhiều có gì ko phải các pác đừng ném đá em :
