Tiềm lực quân sự Liên Bang Nga-Phần 3

http://www.izvestia.ru/news/news220294
NATO muốn mua Mi-26T, loại máy bay vận tải lớn nhất thế giới của Liên Xô/ Nga.
Chiếc Mi-26T có thể chở hơn 20 tấn, được sử dụng vào việc vận chuyển, xây dựng các công trình phức tạp.
Chiếc Mi-26 từng giải cứu một chiếc CH-47 ở Afghanistan.



Mới tháng trước có chú chê Nga thích "thành tích" làm máy bay to, đúng là ếch ngồi đáy giếng.
Được a2p2t sửa chữa / chuyển vào 07:03 ngày 07/11/2009

Có khoảng 400 chiếc trực thăng Nga đang cõng hàng thuê ở Afghan. Thậm chí việc đếm cũng không chính xác bởi
nó nằm rải rác ở các hãng tư nhân Nga chở thuê kiếm tiền, ở các nước đông Âu như Đức, Ba lan, Tiệp, Ukraina...

Cùng vơicác loại xe bọc thép mới , trong học thuyết ESU TZ Nga cũng trang bị pháo tự hành mới cùng dùng UAV "Pchela" để trinh sát và điều khiển bắn vào toạ độ mục tiêu.
Russians develop unique self-propelled gun
07/12/200618:39
MOSCOW. (RIA Novosti military commentator Viktor Litovkin) - Do you know what the word "Msta" means? If not, you can surf the Internet, and you will find that the Msta is a 445-km river flowing through the Tver and Novgorod Regions in western Russia. This river flows into Lake Ilmen and links it with Lake Mstino.
The Msta River basin, with an area of 23,200 square kilometers, is part of the Vyshny Volochok water system. Moreover, the river itself is navigable 134 kilometers from its mouth.
However, the word "Msta" takes on an entirely different meaning if you ask a Russian artillery officer about it. He will tell you that the 152-mm Msta-S (index 2S19) is a self-propelled howitzer, and the Msta-B (index 2A65) is a towed artillery system.
Both guns are intended to destroy tactical nuclear artillery and mortar batteries, tanks and other armored vehicles, as well as military personnel, air-defense weapons, anti-ballistic missiles and command centers. They can also destroy field fortifications and hinder the movement of enemy reserves miles behind the frontline.
These artillery pieces can hit visible targets point blank and from indirect firing positions; invisible targets are also easily destroyed.
Msta howitzers and artillery systems are among the Russian Army''s best weapons.
The reader may be interested to know that howitzers have an elevation angle of more than 45 degrees and can fire over high obstacles, the way mortars do.
Msta-S howitzers, which were quite popular at the international arms fairs in Nizhny Tagil and Omsk, also stole the limelight in Le Bourget near Paris and in the United Arab Emirates.
This howitzer caused quite a stir in Abu Dhabi after firing 40 rounds of ammunition from indirect positions at a target 15 km away in the presence of experts from 20 countries.
Although the gun layer could not see the target, 38 shells weighing 43.5 kg each hit the bull''s eye, while two others exploded not more than 25 meters away from the target''s center. Any artilleryman will tell you that this is an excellent result because shell fragments will destroy everything within a 25-meter radius.
Experts are impressed with the Msta-S howitzer''s high accuracy and rate of fire. This howitzer fires eight to ten shells in 60 seconds, which is more than any other known artillery piece, including the U.S. Army''s M-109 howitzer with a caliber of 155 mm, which is the Msta-S''s counterpart in terms of its specifications and combat designation.
Yury Tomashov, who designed the Msta-S howitzer and who received the title of Hero of Labor (and the Gold Star medal) for this achievement, discussed its remarkable rate of fire with RIA Novosti.
Tomashov noted that the Msta-S features an automatic loading system. Its 50 high-explosive, fragmentation, cluster, anti-tank, anti-radar and other special-purpose shells are stored on ammunition trays inside the turret. A mechanical conveyor, which feeds them into the breech, can also be used while the gun is being loaded from the ground.
Unlike the M-109, the Msta-S can be loaded at any angle of elevation. Its barrel returns to the initial position immediately after firing for greater accuracy and efficiency.
Tomashov said U.S. and British soldiers had to sweat it out and carry a lot of shells during the 2003 invasion of Iraq, code-named Operation Iraqi Freedom. The air-con***ioned Russian artillery system features an elevator for easier loading.
He said the Msta-S crew works inside an armored turret shielding them from shell fragments and large-caliber bullets, as well as chemical and bacteriological weapons and radiation. A special pressurized filter system purifies and decontaminates the ambient air and traps powder gases outside the combat compartment. An airtight jacket encasing the breech also traps powder gases and leaves the air fresh and clean.
According to Tomashov, the howitzer''s fire-control system is its main advantage. The system, which receives intelligence and target-acquisition data, operates in conjunction with computer networks and ensures a high firing accuracy.
Yury Butrin, general designer of the Uraltransmash holding company, which produces Msta-S howitzers, said the fire-control system also includes a ballistic computer, an automatic laying device, a topographic surveying unit and a GLONASS or GPS receiver for high-precision navigation.
This system, which stores data on the ten previous combat missions at minimum, is linked with an observation post and Pchela (Bee)-type unmanned aerial vehicles, as well as A-50 Mainstay early warning and control aircraft similar to NATO''s AWACS planes.
The Kapustnik command-and-control vehicle feeds target coordinates into the fire-control system, which then delivers a devastating strike against enemy positions.
The Msta-S howitzer can fire 152-mm and 155-mm laser-guided Krasnopol shells and Santimetr semi-active homing shells.
The howitzer''s modified 155-mm version can be exported to other countries, including India, which still produces Western European-caliber munitions, a legacy of centuries of British colonial rule.
The Msta-S has the same undercarriage as the T-80 main battle tank. Moreover, its 840-h.p. V-shaped internal-combustion engine can run on six types of diesel fuel. The 42-metric-ton howitzer can move through deserts at 60 kph on its 580-mm wide rubber-and-metal treads. Furthermore, it does not require spikes for greater accuracy because the gun-stabilization system resets firing data and target coordinates after each shot.
Neither Tomashov nor Butrin were able to explain why the Msta-S self-propelled gun, which was developed in the Ural Region, is named after a river flowing further to the west.
Other Uraltransmash experts said the Soviet Defense Ministry''s Rocketry/Artillery Directorate (Russian acronym "GRAU") had issued a request for proposal (RFP) in the early 1980s and designated this weapons system the GRAU 2S19.
However, to avoid mentioning this secret name in everyday life, someone probably decided to call it the Msta either as a reminder of a good vacation that he had spent on the Msta River, or in order to mislead foreign spies. Indeed, why the Msta in the Urals? But the name stuck.
Colonel General Zaritsky, head of the Russian Armed Forces'' missile and artillery unit, said the Russian Army will receive about 2,000 new artillery pieces, mostly revamped Msta-S howitzers, between now and 2015.
http://en.rian.ru/analysis/20061207/56607837.html
==================================================================
KAPUSTNIK-B AUTOMATED FIRE CONTROL SYSTEM Designed to provide automated control over firing elements of tube artillery and multiple launch rocket systems of any caliber and type, both domestic and foreign-made.
The Kapustnik-B automated fire control system comprises:
- 1V153 unified fire control post mounted on the Ural-43203 chassis;
- 1V152 unified command-observation post mounted on the chassis of the BTR-80 armored personnel carrier.
The 1V153 fire control post is used as a command post of the battalion (battery) commander and a fire control post of the battalion chief of staff (battery executive officer); it can also be used as a command post of the artillery unit (regiment, brigade) commander, a fire control post of the unit chief of staff, as an artillery reconnaissance control post or as a post of the firing platoon commander.
The 1V152 command-observation post is used as an advance mobile command-observation post of the battalion (battery) commander. It can be used as an advance artillery reconnaissance post or a self-propelled artillery battalion (battery) fire control post.
In the automated mode the Kapustnik-B fire control system provides:
- reconnaissance, determination of target coordinates, registration, battlefield observation and fire adjustment;
- communication over radio and wire links with higher echelon control systems and cooperating troop units, interface with technical reconnaissance assets (sound, radar, airborne, etc) and intraunit communication with the command-observation post, fire control post and weapons;
- collection, processing, storage and transmission of target data to the fire control post and weapons;
- determination of near-ground meteorological data at the area of fire positions;
- deployment on the run and topogeodetic tie of the command-observation post, fire control post and weapons at unorganized fire positions as well as displacement (evasive maneuver) of batteries;
- unit fire planning and control;
- determination of settings for firing at stationary and mobile targets by the methods of deliberate preparation, record transfer and registration;
- transmission of fire settings to the automated weapon laying and fire control systems;
- control of fire with controlled and guided high-precision munitions;
- fire control from remote automated command-observation posts.
Basic Characteristics
Time to prepare battalion (battery) fire:

on the run, min 3 - 6
at organized fire position, s:

battalion 40 - 50
battery 20 - 30
Deliberate preparation errors:
in range, % 0.5 -0.8
in deflection, mil 3 -4
Number of monitored targets up to 50
Measured distance to weapons, m:

by day 60 - 2,000
by night up to 500
Mean error in determining:
rectangular coordinates, % 0.15, max
rectangular coordinates of weapons (target), m
25, max
oriented weapons, mil 1.5, max
grid azimuth of longitudinal axis, mil
no more than 1 for 6 min

current grid azimuth of longitudinal axis, deg/h
0.1, max
traveled distance, m 10, max
angles, mil 1.5, max
Range, km:
optical surveillance:
by day up to 10
by night up to 3
laser illumination of targets up to 7
communication:
USW channels up to 20
SW channels up to 50
between fire control post
and higher echelon nodes
with deployed antenna mast assembly

of SW radio set up to 350

02/02/2009 18:55
é'éàẹééáéằéắẹ,éẵéáé "éYẹ?éàéằé -1" ẹ?éééắẹ,ééàẹ, ééắ éẹ?éáéẵẹ?éáéẹf "ẹfééáééàéằ-ééắẹ?ééãéáéằ". UAV bee -1 "works on the principle of" saw-struck. " éĂéắééẳéàẹẹ,éẵéắ ẹ ẹ?éàééẹ,éáééẵẹ<éẳéá ẹéáẹẹ,éàéẳééẳéá éãééằééắééắééắ éắééẵẹ ééắéãéẹfẹ^éẵẹ<éạ ẹ?ééãééàéẹ?éáé ẹẹ,ééẵéắééáẹ,ẹẹ ẹéàẹ?ẹOéàéãéẵéắéạ éắééẹéẵéắẹẹ,ẹOẹZ ééằẹ éẹ?éắẹ,éáééẵéáéé. Together with the multiple launch rocket systems air reconnaissance is becoming a serious danger to the enemy.
é'éàẹééáéằéắẹ,éẵẹ<éạ ẹééẳéắéằéàẹ, "éYẹ?éàéằé-1" õ?" éằéáẹ^ẹO ẹ?éẹẹ,ẹO ẹ?éàéằéắééắ ẹ,éàẹ.éẵéáẹ?éàẹééắééắ ééắéẳééằéàéẹé ẹ?ééãééàéééá éá éẵéééằẹZééàéẵéáẹ ééắéằẹ ééắẹ. Unmanned aircraft "bee-1" - only a part of the whole complex of technical intelligence and surveillance of the battlefield. é'ẹéà éắééắẹ?ẹfééắéééẵéáéà ẹfẹẹ,ééẵéắééằéàéẵéắ éẵé éẵéàẹééắéằẹOééáẹ. éẹ?ẹféãéắéẹ<ẹ. ééẹ,éắ, é éãééẹfẹééẹZẹ, éàééắ ẹ ééàẹ?éàéééáéảéẵéắéạ ééẹ,ééẹféằẹOẹ,ẹ<. All the equipment is installed on several trucks, and run it from a mobile catapult. éĂééẳéắéằéàẹ, éắẹéẵéẹ?éàéẵ éáéẵẹ"ẹ?ééẹ?éẹéẵẹ<éẳéá éá ẹ,éàééằéắééáéãéáéắéẵéẵẹ<éẳéá éééẳéàẹ?ééẳéá, ẹ?ẹ,éắ ééắéãééắéằẹéàẹ, éàéẳẹf ẹ?ééãééằẹééàẹ,ẹO éẹ?éắẹ,éáééẵéáéé ẹ éẹ<ẹéắẹ,ẹ< ééắ ééẹfẹ. ẹ ééắéằéắééáéẵéắéạ ééáéằéắéẳéàẹ,ẹ?éắé. The aircraft is equipped with infrared and thermal imaging cameras, which allows him to see the enemy from a height of up to two and a half kilometers.
"éưẹ,éắẹ, ééắéẳééằéàéẹ éắééàẹééàẹ?éáéééàẹ, ééàẹ?éàééẹ?ẹf ééắéắẹ?ééáéẵéẹ, éắéẹSéàéẹ,éắé éẹ?éắẹ,éáééẵéáéé é ẹ?éàééằẹOéẵéắéẳ éẹ?éàéẳéàéẵéá, ẹ,éắ éàẹẹ,ẹO ẹ éàééắ ééắéẳéắẹ?ẹOẹZ ẹ?éàééằéáéãẹféàẹ,ẹẹ éẹ?éáéẵẹ?éáé ẹfééáééàéằ-ééắẹ?ééãéáéằ", õ?" ẹ?éẹẹéééãẹ<éééàẹ, éắééáéẵ éáéã ẹ?ééãẹ?éééắẹ,ẹ?éáééắé "éYẹ?éàéằẹ< - 1" é~ééắẹ?ẹO éăééằẹẹ?. "This complex provides the transfer of the object coordinate the enemy in real time, ie it is realized through the principle of saw-struck," - says one of the developers'' Bees - 1 "Igor Shkljar.
éséé ẹ,éắéằẹOééắ "éYẹ?éàéằé" éãéẹéàééằé ẹ?éàéằẹO, éàéà ééắéắẹ?ééáéẵéẹ,ẹ< ééàẹ?éàééẹZẹ,ẹẹ éẵé ẹ?éàééẹ,éáééẵẹ<éà ẹéáẹẹ,éàéẳẹ< éãééằééắééắééắ éắééẵẹ. As soon as the "Bee" spotted purpose, its coordinates are transmitted to multiple launch rocket systems. é' ẹẹ?éáẹ,ééẵéẵẹ<éà ẹéàéẹféẵéẹ< ẹ?éééàẹ,ẹ< ééắẹ?ééảéẹZẹ, éẹ?éắẹ,éáééẵéáéé. In seconds the missile strike the enemy. éÂéééắéạ ẹ,ééẵééàéẳ ẹféảéà ééắéãééắéằéáéằ é ẹ^éàẹẹ,ẹO ẹ?ééã ẹéắéẹ?éẹ,éáẹ,ẹO éẹ?éàéẳẹ éẵé ééắẹ?ééảéàéẵéáéà ẹ?éàéằéá. This tandem has allowed up to six times to reduce time-to-kill goal.

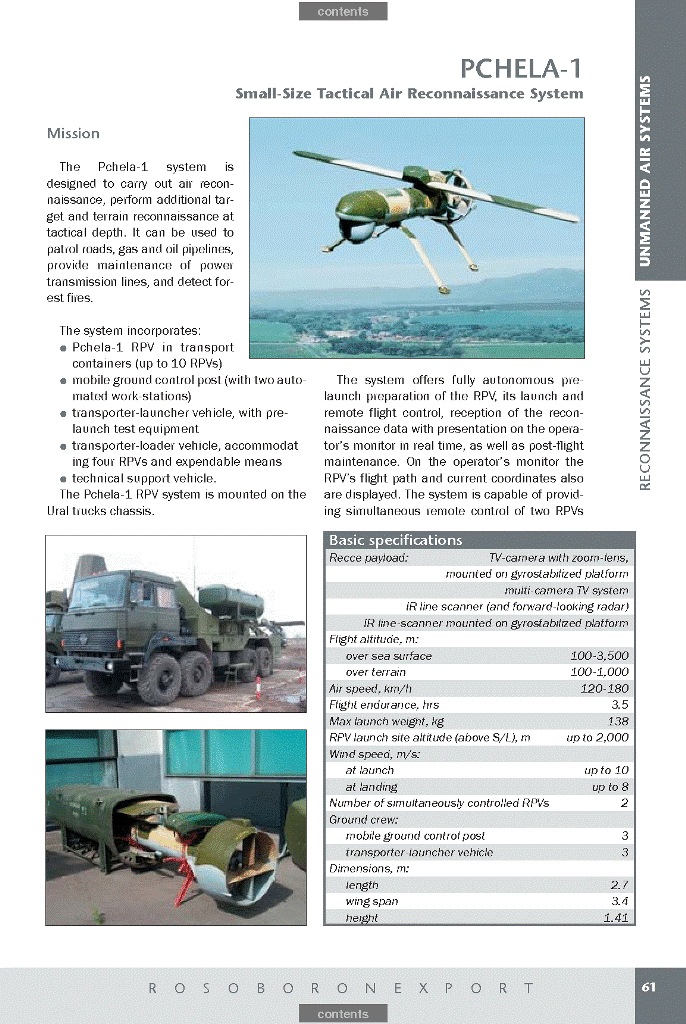

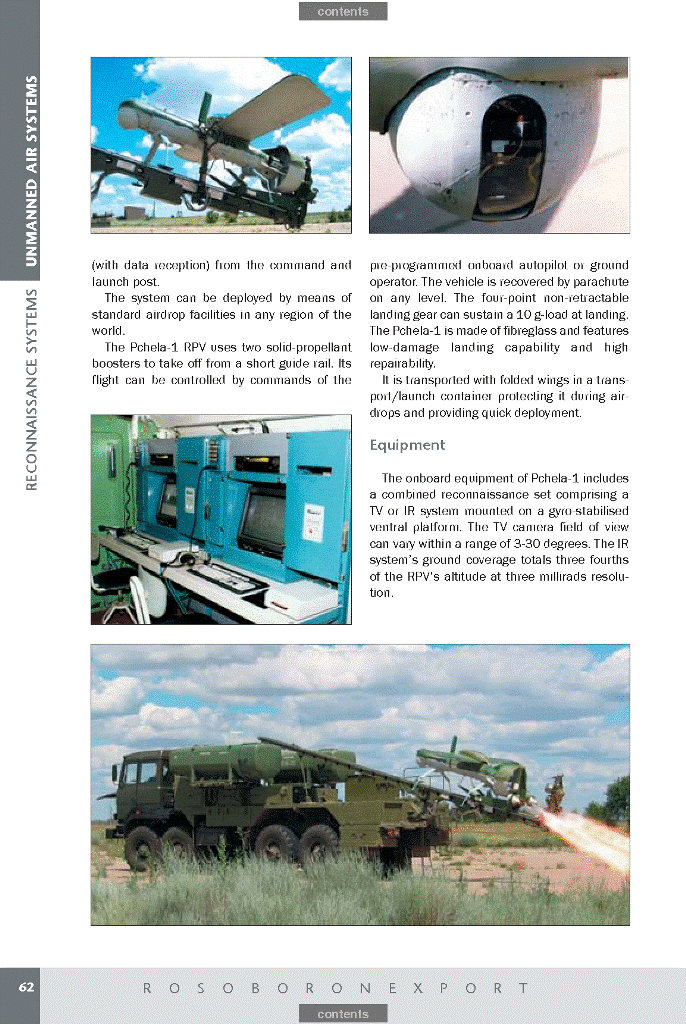

"éYẹ?éàéằé- 1" éắẹ"éáẹ?éáééằẹOéẵéắ éẹ?éáéẵẹẹ,é éẵé ééắéắẹ?ẹféảéàéẵéáéà ẹ?éắẹẹéáéạẹééắéạ éẹ?éẳéáéá. "Bee-1" is officially adopted an army of Russia. é é 2009 ééắéẹf ééắẹ,éắééáẹ,ẹẹ ééắéẵẹ,ẹ?ééẹ, éẵé ééắẹẹ,éééẹf ééàẹééáéằéắẹ,éẵéáééắé éắééẵéắéạ éáéã éãéẹ?ẹfééàéảéẵẹ<ẹ. ẹẹ,ẹ?ééẵ. And in 2009, preparing a contract for the supply of drones a foreign country.
http://www.rian.ru/video/20090202/160775688.html http://www.rian.ru/video/20090202/160775688.html

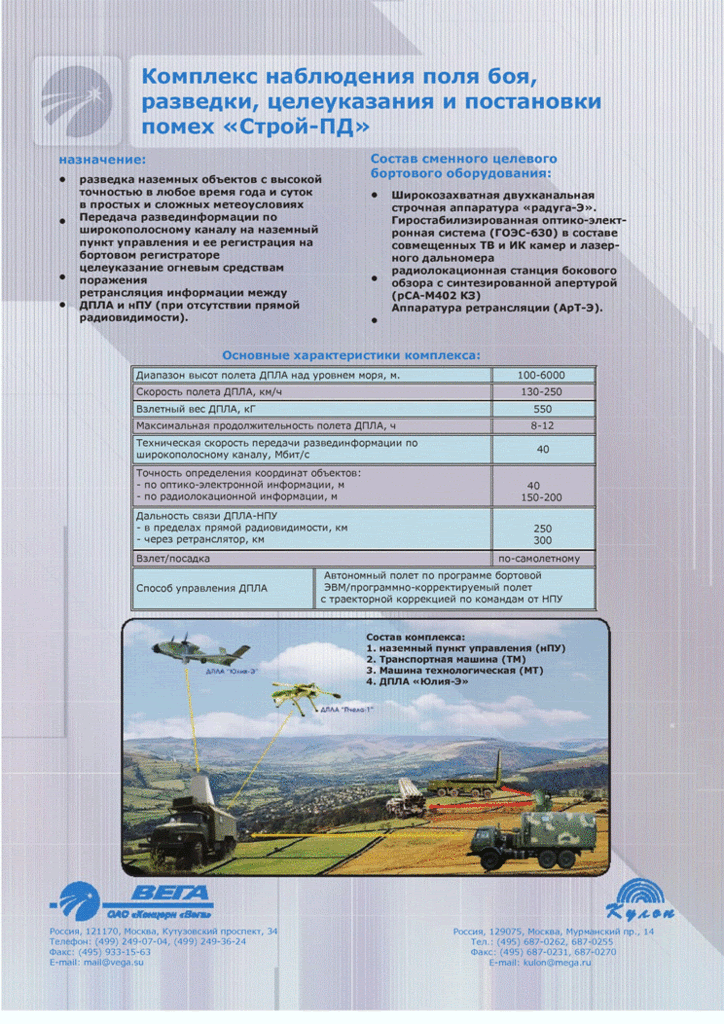

Hệ thống "Pchela" dùng kết hợp với UAV "Tipchak" hay "Yulia-E"




Được gulfoil sửa chữa / chuyển vào 16:34 ngày 07/11/2009

Bác đùa dui thiệt đó nghen.mèn đét ơi,topic của người ta thì bác làm mấy bài hay.topic của bác chắc chiển qua diễn đàn NGÔN NGỮ VÀ VĂN HÓA CÁC NƯỚC quá

Các bác cho em hỏi tại sao tụi UN khoái dùng máy bay Ngố thế ạ?
Phim nào cũng thấy máy bay trắng sơn UN là máy bay Ngố!

Máy bay bền, tốt, yêu cầu không quá cao như chở các cốp đi thăm đảo nên các hãng bay Đông Âu bao sân tốt

là do P/P đó bác.... he he phim thì ai nói làm gì ,,thực tế nó vậy rồi
http://secint50.un.org/av/photo/detail/0034472.html

Phát tát vào mặt rồ Ngố khi vừa hôm trc huyênh hoang khoác lác hỷ hả về vụ F16 Mỹ tai nạn kô tìm thấy "xác". Đã là tai nạn thì Nga hay Mỹ hay ai khác đều không tránh khỏi. Cười người hôm trc hôm sau dẫm ngay phải đống thải mình phót ra:
-Hôm nay, 7/11 Tu-142 Bear F(Phiên bản nâng cấp chống ngầm của máy bay chiến lược Tu-95 Bear đâm đầu xuống biển.
-Trước đó, 1/11 Il-76 (vận tải quân sự hạng nặng) rơi.
Tổng cộng trong 1 tuần, Nga mất 2 máy bay hạng nặng và tầm 20 binh sĩ. Đáng tiếc cho Nga nhưng nó là bài học đắt giá cho thói vô liêm sỉ của rồ Ruski
