Xe Tank Các Quốc Gia Trên Thế Giới (World's Tanks)

K1A1 chính Căn Tank, Hàn Quốc
Crew
4
Weight
54.5t
Overall Length With Gun Forward
9.71m
Width
3.59m
Height to Top of Turret
2.25m
Model
VRC-947K, VRC-964K
Modulation
FM
Rotem (part of the Hyundai group) has developed the K1 series of vehicles, which includes the K1A1 120mm main battle tank, the K1105 mm main battle tank, K1 ARV armoured recovery vehicle, and the K1 AVLB armoured vehicle launch bridge. The vehicles are built at Rotem''s automated production facility at ChangWon.
The first two prototypes of the K1A1 successfully completed operational tests in 1997 and the tank is in production and in service with Republic of Korea Army. Total requirement is for about 300 K1A1 tanks, scheduled to be in service by 2010.
Rotem is developing the successor to the K1A1, the K2 Panther, which is armed with a 120mm/L/55 smoothbore gun with automatic loader and has uprated engine and improved armour. Three pre-production tanks have been completed. It is planned that about 680 K2 tanks will be produced from 2011.
K1A1 MAIN BATTLE TANK
The K1A1 is an upgraded version of the K1 MBT. Its firing range is enhanced by a 120mm M256 smoothbore gun, together with an improved gun and turret drive system. The M256 gun is also installed on the US M1A1/2 main battle tanks. A new ballistic computer for 120mm munitions has higher processing capacity and speed.
Samsung Electronics, now Samsung Thales, are providing the fire control system including the Korean Commander''s Panoramic Sight (KCPS) which includes a thermal imager with 288x4 focal plane array, KGPS gunner''s sight with thermal imager, eyesafe laser rangefinder and dual field of view day TV camera and KBCS ballistic fire control computer.
The race ring turret bearing provides improved sealing for fording and turret slewing characteristics. The fire suppression system has been equipped with a thermal wire fire sensor in the engine bay.
K1 MAIN BATTLE TANK ?" ROKIT
The K1 has been operational in the RoK Army since 1986 and is known as the Republic of Korea Indigenous Tank or ROKIT. Following early design work based on US M1 technology, the K1 tank was designed and produced by Korea. The manoeuvrability of the tank is optimised for the varied geographical features of Korea, which include mountainous terrain, jungle, paddy fields and swamp.
The main gun is a 105mm rifled high-velocity cannon with a coaxial 7.62mm machine gun. The commander''s station is equipped with a 50-calibre machine gun and the loader''s station with a 7.62mm machine gun. The turret slews at 750mm a second and elevates and depresses at 400mm a second.
The commander''s panoramic sight has three modes of operation: align with the main armament, independent tracking and gunner override. The commander has the option of handing off the target to the gunner or of slaving the gun to the commander''s sight and initiating the fire. The K1 has demonstrated a first round hit probability of greater than 90% when firing on the move at a moving target.
The Raytheon Gunner''s Primary Sight Subsystem (GPSS) is stabilised in two axes and includes a thermal imager and laser rangefinder. The gunner''s ballistic computer automatically downloads crosswind data, vehicle cant, azimuth tracking rate and range. The gunner manually inputs data for air pressure, air temperature, barrel wear, barrel droop and ammunition type.
PROPULSION
The Kl is equipped with a turbo-charged 1,200hp MTU MB 871 diesel engine providing a power to weight ratio of 23.5hp/t. The transmission has a planetary gear train and a hydrodynamic torque converter. In high gear, the Kl can attain a maximum road speed of approximately 65km/h. The low ground pressure of 0.87kg/cm² enables it *****ccessfully manoeuvre in sodden or sandy terrain.
The Kl has hydro-pneumatic suspension and torsion bar springs. The suspension system also provides vehicle attitude control or ''kneeling'' capability, which increases the main gun depression angle to a maximum of minus 10°.
K1A1 FAMILY OF VEHICLES
The Kl armoured recovery vehicle has a crane system with the ability to lift up to 25t, while the main winch system is capable of towing a maximum of 70t with a guide pulley.
The Kl armoured vehicle launched bridge can launch and retrieve its 22m-long bridge to span gaps up to 20.5m, allowing a 60t (MLC 66) vehicle to cross. It takes only three to five minutes for launching and ten minutes for retrieving the bridge.
The mine-clearing roller system can be installed to detect and detonate land mines. It is capable of clearing pressure mines at a rate of 16km/h.


Các xe được xây dựng tại Hyundai của thiết bị tự động sản xuất tại Changwong.

Chính là một súng 105mm rifled cao velocity cannon.
Các K1 bể ford con sông có thể lên đến 1.2m sâu sắc, và lên đến 2.2m với các bộ.
http://www.emilitarynews.com/priv/e***or_data/20090410/1239324619.jpg
Nguồn army-technology.com

ôi giời, google translate xong thì cũng phải chú ý chỉnh sửa ngôn từ chứ, đọc xong tự dưng có cảm tưởng mình không biết tiếng Việt

M60A3 chính Căn Tank, Mỹ
The M60 is one of the world''s most successful main battle tanks with 15,000 having been produced and serving in the armies of 22 countries. The tank has provided proven battlefield performance over four decades and has been continuously advanced and upgraded with advanced weapon control, ammunition, applique armour and increasingly powerful engines. The M60 series main battle tanks of Egypt, Saudi Arabia and the USA were deployed in Operation Desert Storm in 1991 during the Gulf Crisis.
M60 tanks entered service with the US Army in 1960. The M60A1 with a new turret, thicker armour and a new ammunition stowage system, was manufactured from 1962 to 1980. The development of the M60A2 with a new turret fitted with a 152mm gun and missile launcher was halted and effort was directed to the development and production of the highly successful M60A3, which incorporated improvements to the gun fire control and entered service in 1978.
The manufacturer, General Dynamics Land Systems Division, has ceased production of the tank but continues to provide fleet management support to the US Army Tank Automotive Command and to user countries worldwide.
Upgrades
An international team of contractors have developed an upgrade package for the M60 tank and for the M60 armoured vehicle launch bridge. The team includes General Dynamics Land Systems based in Sterling Heights, Michigan, Allison Transmission in Indianapolis and Nimda Company based in Givataim, Israel.
GDLS has built a prototype of the 120S MBT which is an M1A1 turret mounted on an upgraded M60 chassis. The 120S is armed with a 120mm M256 smoothbore gun and has a computerised fire control system.
Raytheon is upgrading 180 M60A3 tanks of the armed services of Jordan with the integrated fire control systems (IFCS).
IFCS includes: HIRE II second-generation thermal imaging gunner''s sight, ELITE II eyesafe laser rangefinder and General Dynamics Canada digital ballistic computer. The MBTs are also being fitted with Ruag Land Systems L50 120mm smoothbore compact tank gun.
Weapons
The main gun is the 105mm M68 rifled gun with 63 rounds of ammunition. The gun is fully stabilised in the elevation and traverse axes, and is fitted with a thermal sleeve. Both gunner and commander are able to fire the gun and select the type of ammunition to be fired. The coaxial weapon is the 7.62mm M240 machine gun.
The tank has two smoke generation systems, an engine exhaust smoke system which sprays fuel into the exhaust manifold, and two six-barrelled smoke grenade launchers which are fitted on ether side of the turret.
Fire control
The tank is fitted with a Raytheon fire control system including an AN/WG-2 eyesafe laser rangefinder and M21 ballistic computer. The gunner''s sight is boresighted with the laser rangefinder.
The tank''s M21 fire control computer senses the type of ammunition, which has been selected. The gunner provides the input data for the air temperature and pressure. Other input data is downloaded from various sensors: the target range from the laser rangefinder and cant, crosswind, and inertial tracking rates from the gun stabilisation unit. This allows accurate engagement against moving targets while the tank is on the move.
Engine
The Continental AVDS-1790-2C 12 cylinder air-cooled diesel engine provides 750 bhp at a rotational speed of 2,400rpm. The M60A3 achieves a maximum cross-country speed of 10mph to 12mph and up to 30mph roadspeed. The cruise range is 312 miles.
The vehicle is able to negotiate vertical steps up to 36in, gradients up to 60% and side slopes up to 30%.
The tank can cross water up to 48in in depth without preparation and up to 90in in depth using the fording kit.
Hull
The ballistic-shaped turret is cast while the hull is cast and welded. The crew are provided with a nuclear biological and chemical warfare protection system and a fire detection and halon gas fire extinguishing system.
Mine clearance
M60 tanks have been fitted with mine-clearance systems for use in wartime and in post-war periods of de-escalation of hostilities for the reclamation of land for safe use. The Pearson engineer mine plough contains a magnetic signature device, the Demeter, to explode magnetically influenced anti-tank mines ahead and to the side of the vehicle. At each side at the rear of the M60 tank the Pearson Pathfinder minefield marking system marks the cleared safe lane.

Hơn 15000 M60 đã được sản xuất cho các armies của 22 quốc gia.

Các đầy đủ các chính stabilised gun là 105 mm rifled súng M68 với 63 vòng của ammunition.

Các M60A3 đạt tối đa cross-quốc gia tốc độ 10mph cho 12mph và lên đến 30mph roadspeed.

Nguồn army-technology.com/projects/m60/

Được alphandt sửa chữa / chuyển vào 00:29 ngày 07/05/2009

Xem lại cái gì, rác gì, bốc mùi gì ? Mình không hiểu đồng chí đang muốn nói việc gì. Việc mình góp ý ở đây chỉ đơn giản là sau khi sử dụng phần mềm dịch 1 một số đoạn trong bài thì thay vì copy paster đòng chí nên chỉnh sửa lại câu văn vì bọn nó dịch theo kiểu từ điển nên để nguyên sẽ không ra câu cú hoàn chỉnh (điều này các bác ở trang trước cũng nói rồi), vậy mà đồng chí lập tức lái sang hướng spam, rác rưởi thì cũng bó tay quỳ gối với đồng chí rồi. Không tự dịch được thì tốt nhất để nguyên bản tiếng Anh của nó, đừng đụng vào như trường hợp của đ/c khó coi lắm. Chúc đồng chí tung hoành vui vẻ, tôi không góp ý gì nữa kẻo lại mang tiếng quăng rác, chọc gậy bánh xe "người hiểu cao biết rộng"
Tái búi: Cái vàng vàng ấy, đồng chí nên chú ý chính tả =.=!
Được negropone sửa chữa / chuyển vào 08:46 ngày 07/05/2009
Được negropone sửa chữa / chuyển vào 08:50 ngày 07/05/2009

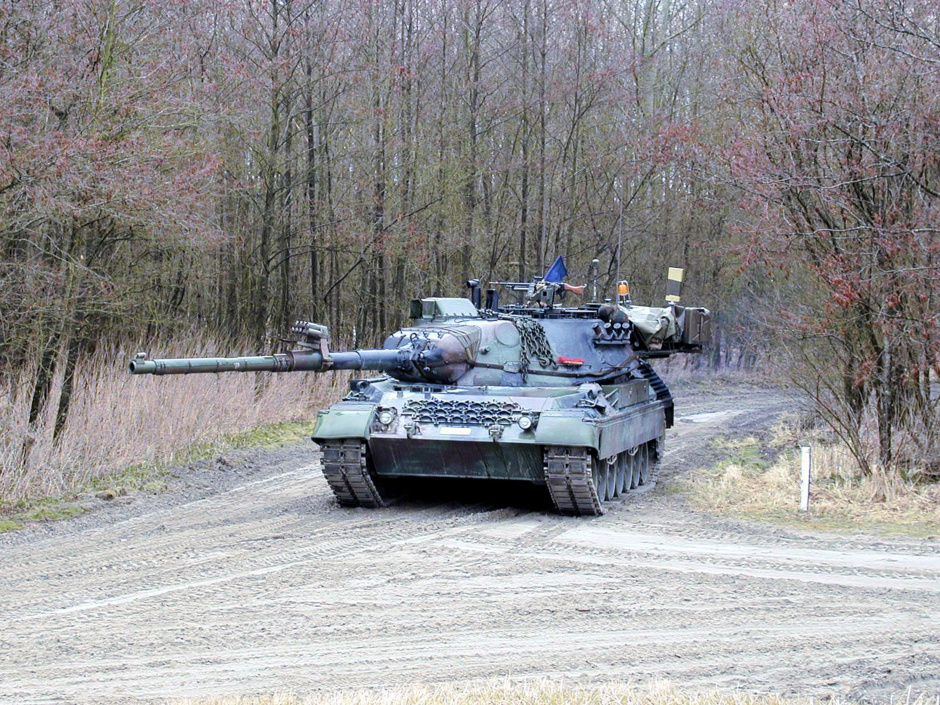

Kampfpanzer Leopard 1A5DK (DK)(Đức)


Leopard 1 A5DK-1 mit geschweiYtem A3-Turm, EMES 18 und Klimaanlage im Heck-Staukasten
(Photo: Arnd Baumgardt)


Das Turmheck des dänischen A5 mit zusätzlichen Staumöglichkeiten und Halterungen für Reservekanister
(Photo: Arnd Baumgardt)

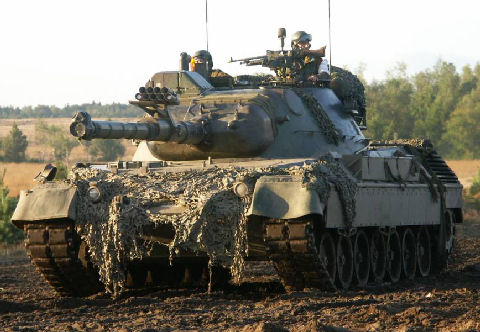

Leopard 1 A5DK-1 auf dem Truppenübungsplatz Oksbol
(Photo: Detlef Riebesell)



Nguồn panzerbaer.de

Kampfpanzer Leopard 2 A5 (DK)(Đức)

Der Leopard 2 A5 in der dänischen Ausführung

các thiết kế lại về phía sau tháp




Nguồn panzerbaer.de

HQ sau này đã có K2 nhưng em không rõ K2 khác K1 ở điểm nào. Hình như là được trang bị ARENA của Nga

DER MITTLERE KAMPFPANZER M47 (BW)1956 Đức
